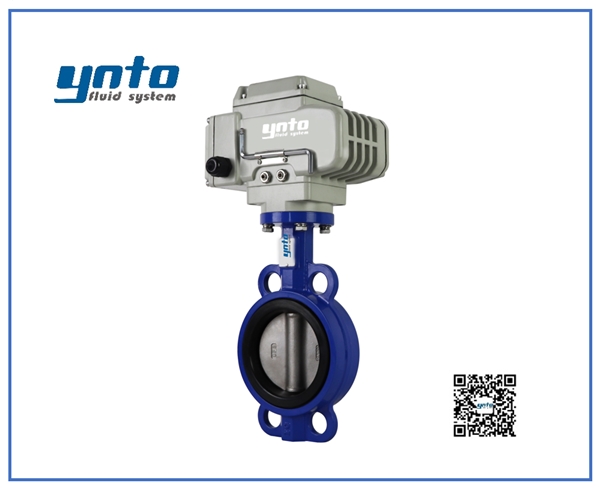

电动蝶阀(对夹式无靠背)​D97A1X-10/16​
电动蝶阀(对夹式无靠背)​D97A1X-10/16​

电动蝶阀(对夹式无靠背)​D97A1X-10/16​


电动蝶阀(对夹式无靠背D97A1X-10/16



规格 H2 H3 Φd ΦD ΦD1 L L1 L2 重量(KG)
DN50 255 70 20 125 96.5 161 42 32 4.33
DN65 267 80 20 145 110 161 45 47 4.89
DN80 280 92 20 160 124 161 45 65 5.44
DN100 297 107 20 180 158 188 52 91 8.95
DN125 317 121 20 210 187 188 55 112 11.34
DN150 337 134 23 240 214 188 56 146 15.38
DN200 407 170 23 295 266 268 61 194 20.65
DN250 446 208 23 350 325 268 66 242 29.31
26 355
DN300 471 240 23 400 380 268 77 292 38.12
26 410
注:表格中每隔两个数值分别表示PN10和PN16两种压力下的参数值。
Note:The table at the two values that were PN10 and PN16 under the pressure of the two parameters.
名称Name 材料Materials
阀体Body 灰铸铁、球墨铸铁Cast Iron,Ductile Iron
阀板Disc 球铁尼龙、球铁电镀、304不锈钢、316不锈钢、316L不锈钢、双相不锈钢、铝青铜Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
阀座Seat 三元乙丙、丁腈、耐磨乙丙、耐温乙丙、氟橡胶、硅橡胶EPDM,NBR,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
阀轴Stem 45#碳钢、304不锈钢、316不锈钢、416不锈钢Carbon Steel 45#,Stainless Steel 304,Stainless Steel 316,Stainless Steel 416
产品型号Products Model D97A1X-10/16
公称通径(mm)Normal Diameter DN50-DN300
公称压力(Mpa)Normal Diameter PN1.0-1.6MPa
适用介质Applicable medium 水、海水、污水、油、空气、食品、弱酸碱等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
适用温度Applicable temperature -10~110℃
