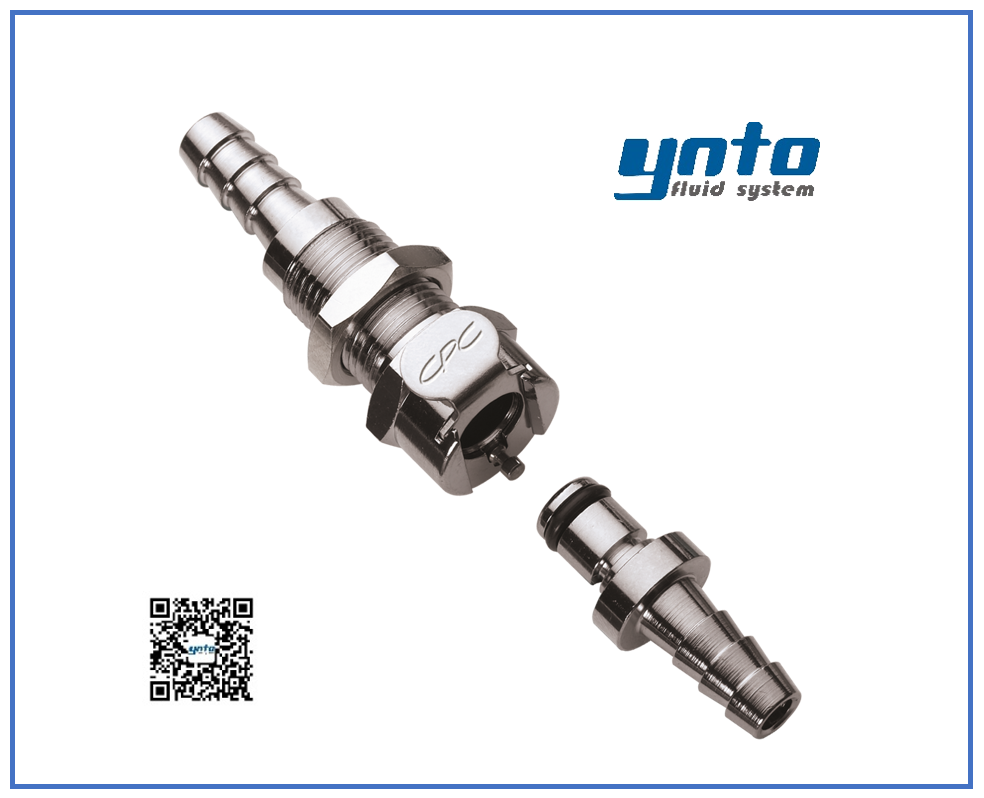

MC系列接头，美国CPC接头，CPC接头
MC系列接头，美国CPC接头，CPC接头
MC 系列
经久耐用，可耐受高温高压，方便进行单手连接和断开。
Features and Benefits
| 特点 | 优点 | ||
|
黄铜材料 |
|
结构持久耐用，可耐受高温和高压 |
|
|
兼容性好 |
|
可与PMC和PMC12系列 接头配用 |
|
|
耐高温能力 |
|
额定温度可达 204°C |
|
|
Colder 指锁 |
|
可单手连接和断开 |
Specifications
| Pressure: | Vacuum to 250 psi, 17.3 bar | |||
| Temperature: | -40°F to 180°F continuous, -40°C to 82°C continuous | |||
| Materials: | ||||
| Main components and valves: | Chrome-plated brass | |||
| Thumb latch: | Stainless steel | |||
| Valves: | Acetal | |||
| Valve springs: | 316 stainless steel | |||
| External springs and pin: | Stainless steel | |||
| O-rings: | Buna-N | |||
| Finish: | Chrome | |||
| Tubing range: | 1/8" to 1/4" ID, 3.2mm to 6.4mm ID | |||

|
||||
| WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. | ||||
Cv Value
|
Cv ~ 0.51 (7.35) 最大 |
|
Cv ~ 0.26 (3.75) 最大 |
|
Cv ~ 0.24 (3.46) 最大 |
Legend
